Brazed plate heat exchanger
Brazed plate heat exchanger Features:
* Compact, easy to install
* Use thin sheet
* High heat transfer coefficient
* Less stagnation
* Light weight
* Only 20-30% of shell and tube heat exchangers
* Less water consumption
* Brazed plate heat exchanger heat transfer efficiency is high, so that it is only in the same cooling conditions equivalent to the shell-type * heat exchanger 1/3 of the cooling water flow.
* Durable
* Can withstand high temperature (200 ° C) and high pressure (30bar)
* Eliminates corrosion problems
* Removed the gasket
* Low dirt factor
* High turbulence reduces the dirt coefficient, thereby reducing the number of cleaning.
* Compact, easy to install
* Use thin sheet
* High heat transfer coefficient
* Less stagnation
* Light weight
* Only 20-30% of shell and tube heat exchangers
* Less water consumption
* Brazed plate heat exchanger heat transfer efficiency is high, so that it is only in the same cooling conditions equivalent to the shell-type * heat exchanger 1/3 of the cooling water flow.
* Durable
* Can withstand high temperature (200 ° C) and high pressure (30bar)
* Eliminates corrosion problems
* Removed the gasket
* Low dirt factor
* High turbulence reduces the dirt coefficient, thereby reducing the number of cleaning.

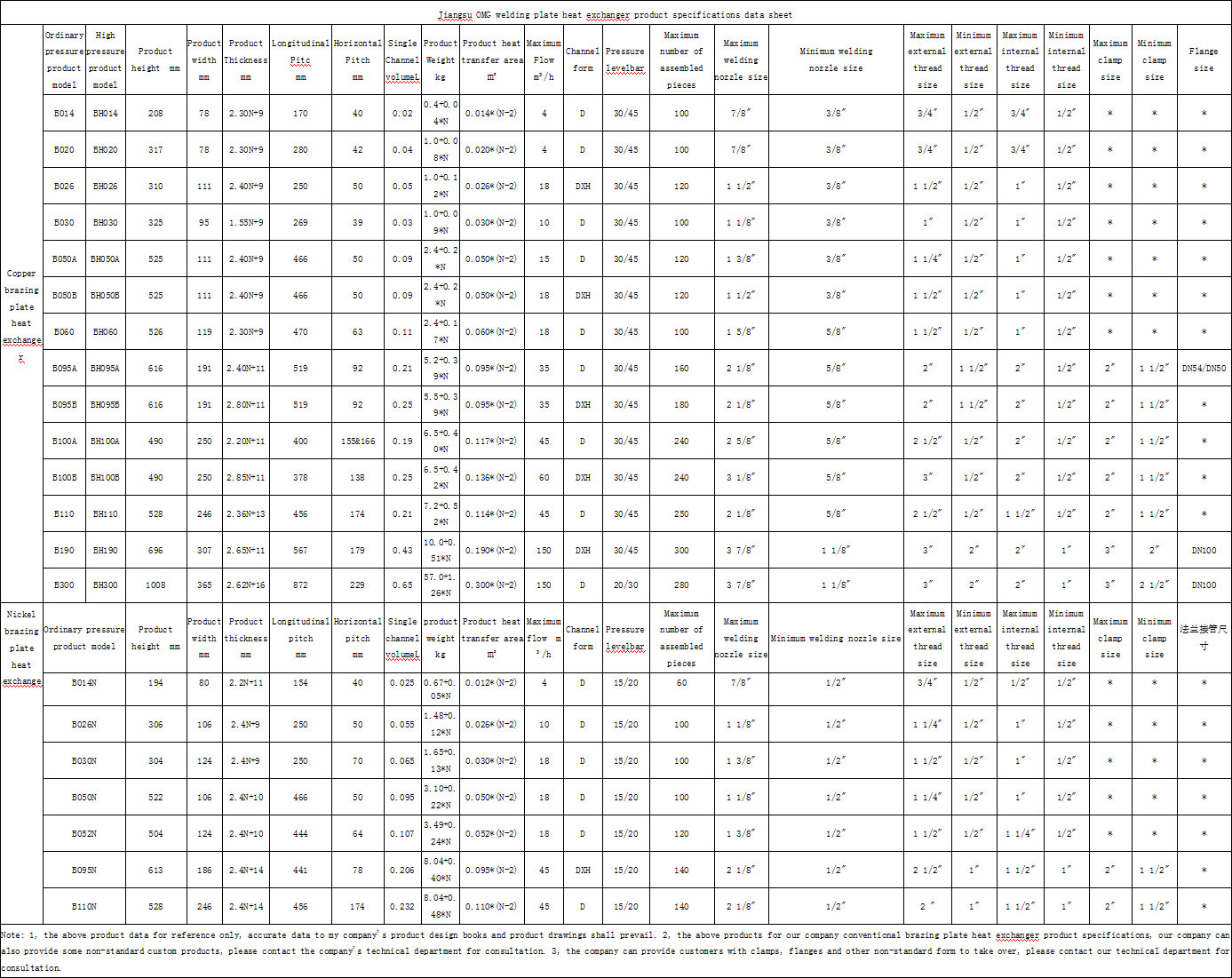

| Copper brazing | Nickel brazing | ||
| Plate material | AISI304/316L | Plate material | AISI316L |
| Interface material | AISI304 | Interface material | AISI304 |
| Brazing material | copper | Brazing material | 镍 |
| Maximum design temperature | 200°C | Maximum design temperature | 200°C |
| Minimum design temperature | -160°C | Minimum design temperature | -160°C |
| Maximum design pressure | 30/45 bar | Maximum design pressure | 20/30 bar |
